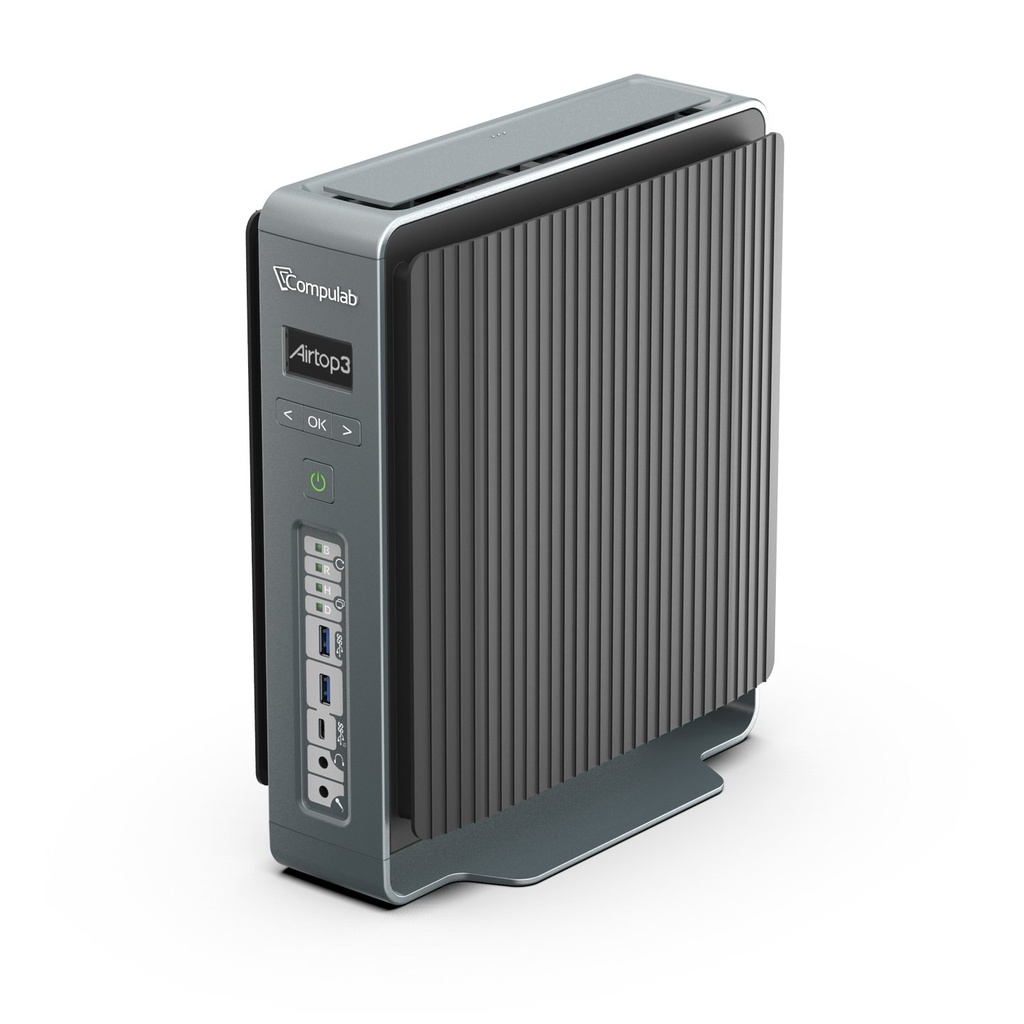

Airtop3 Configurable
Értékesítési leírás
| Network: 2 x GBit (Intel I219 + Intel I210) (opcionálisan 2 x 10 GBit; opcionális FACE modul: 4 x GBit vagy 4 x GBit +PoE vagy 2 x optikai LAN) |
| Display: 2 x DisplayPort 1.2 – 4K @ 60 Hz és 1 x HDMI 1.4 – 4K @ 24 Hz (max. 7 displays: with optional Nvidia GTX 1660 6GB or Quadro RTX 4000 8GB)) |
| RAM type: max. 128GB RAM, 4 x UDIMM DDR4-2666 ECC or non-ECC |
| USB: 6 x USB 3.1 gen 1 type-A (optionally 3-4 USB port on FACE modul - FMAT3) |
| Serial port: 3 x full RS232 (optionally 6 more on FACE modul) |
| Audio: Stereo line-out | mic | optical S/PDIF | HDMI & DP audio (optional: FMAT3 line-out | mic) |
| Expansion: FACE expansion moduls (FM-AT3 Built-in-self-test LED indicators | 3x USB | audio | micro-SD | mini-PCIe) (FM-POE 4x Gbit Ethernet with PoE (PSE) | 2x USB 2.0) (FM-LANE4U4 4x Gbit Ethernet | 4x USB 2.0) (FM-OPLN 2x Optical Gbit Ethernet (SFP+) | 2x USB 2.0) (FM-SER 6x RS232 / RS485) (FM-XTDM2 2x mini-PCIe) |
| Power: DC 19V - 24V (redundant inlet, optionally + 1 external power brick) |
| Power consumption: 8W - 300W (in case of Quadro RTX 4000, double power brick recommended) |
| Temperature range: 0°C - 40°C (optionally -20°C - 70°C [TE] vagy -40°C - 70°C [TI]) |
| Dimension: 100mm x 300mm x 255mm |
| Housing: Alu housing, fanless, passive cooling, heat radiators on both sides of the house |
| Mounting: Optional VESA / DIN adapter |
| IoT support: Yes |
Specifications
| Háttértárak | |
|---|---|
| Storage | Without storage or 120GB v. 128GB M.2 SSD (2280) NVMe or 240GB v. 256GB M.2 SSD (2280) NVMe or 480GB v. 512GB M.2 SSD (2280) NVMe or 960GB v. 1024GB M.2 SSD (2280) NVMe or 1920GB v. 2048GB M.2 SSD (2280) NVMe |
| Storage 2 | Without storage or 120GB v. 128GB M.2 SSD (2280) NVMe or 240GB v. 256GB M.2 SSD (2280) NVMe or 480GB v. 512GB M.2 SSD (2280) NVMe or 960GB v. 1024GB M.2 SSD (2280) NVMe or 1920GB v. 2048GB M.2 SSD (2280) NVMe |
| Storage 3 | Without storage or 120GB v. 128GB 2.5" SSD Sata 3 or 240GB v. 256GB 2.5" SSD Sata 3 or 480GB v. 512GB 2.5" SSD Sata 3 or 960GB v. 1024GB 2.5" SSD Sata 3 or 1920GB v. 2048GB 2.5" SSD Sata 3 |
| Storage 4 | Without storage or 120GB v. 128GB 2.5" SSD Sata 3 or 240GB v. 256GB 2.5" SSD Sata 3 or 480GB v. 512GB 2.5" SSD Sata 3 or 960GB v. 1024GB 2.5" SSD Sata 3 or 1920GB v. 2048GB 2.5" SSD Sata 3 |
| Storage 5 | Without storage or 120GB v. 128GB 2.5" SSD Sata 3 or 240GB v. 256GB 2.5" SSD Sata 3 or 480GB v. 512GB 2.5" SSD Sata 3 or 960GB v. 1024GB 2.5" SSD Sata 3 or 1920GB v. 2048GB 2.5" SSD Sata 3 |
| Storage 6 | Without storage or 120GB v. 128GB 2.5" SSD Sata 3 or 240GB v. 256GB 2.5" SSD Sata 3 or 480GB v. 512GB 2.5" SSD Sata 3 or 960GB v. 1024GB 2.5" SSD Sata 3 or 1920GB v. 2048GB 2.5" SSD Sata 3 |
| Hardver | |
|---|---|
| Network | 2 x GBit (Intel I219 + Intel I210) (opcionálisan 2 x 10 GBit; opcionális FACE modul: 4 x GBit vagy 4 x GBit +PoE vagy 2 x optikai LAN) |
| Uncategorized | |
|---|---|
| CPU | Celeron G4900T or Xeon E-2244G (71W, 4 cores, 3.8GHz) or Core i5-9500E or Core i7-9700E or Xeon E-2278GE or Xeon E-2176G |
| Max RAM | Without RAM or 8GB or 16GB or 32GB or 64GB or 128GB |
| External graphic card/NVMe | Without external graphic card or GTX 1660 Ti (in case of TE/TI it is not available) or Quadro RTX 4000 or Intel X550-T2 dual 10GbE or NVMe x 3 adapter |
| Display | 2 x DisplayPort 1.2 – 4K @ 60 Hz és 1 x HDMI 1.4 – 4K @ 24 Hz (max. 7 displays: with optional Nvidia GTX 1660 6GB or Quadro RTX 4000 8GB)) |
| RAM type | max. 128GB RAM, 4 x UDIMM DDR4-2666 ECC or non-ECC |
| USB | 6 x USB 3.1 gen 1 type-A (optionally 3-4 USB port on FACE modul - FMAT3) |
| Serial port | 3 x full RS232 (optionally 6 more on FACE modul) |
| Audio | Stereo line-out | mic | optical S/PDIF | HDMI & DP audio (optional: FMAT3 line-out | mic) |
| Expansion | FACE expansion moduls (FM-AT3 Built-in-self-test LED indicators | 3x USB | audio | micro-SD | mini-PCIe) (FM-POE 4x Gbit Ethernet with PoE (PSE) | 2x USB 2.0) (FM-LANE4U4 4x Gbit Ethernet | 4x USB 2.0) (FM-OPLN 2x Optical Gbit Ethernet (SFP+) | 2x USB 2.0) (FM-SER 6x RS232 / RS485) (FM-XTDM2 2x mini-PCIe) |
| Power | DC 19V - 24V (redundant inlet, optionally + 1 external power brick) |
| Power consumption | 8W - 300W (in case of Quadro RTX 4000, double power brick recommended) |
| Temperature range | 0°C - 40°C (optionally -20°C - 70°C [TE] vagy -40°C - 70°C [TI]) |
| Dimension | 100mm x 300mm x 255mm |
| Housing | Alu housing, fanless, passive cooling, heat radiators on both sides of the house |
| Mounting | Optional VESA / DIN adapter |
| IoT support | Yes |
